A miniature safety limit switch with a forced-opening mechanism that physically separates the NC contact when contacts weld. Gold-clad contacts carry standard loads and microloads down to DC5V 1mA.
WHAT MAKES THE T4N SERIES
The direct-opening mechanism drives the NC contact apart when contact welding occurs. Plunger pressure physically separates the contact pair, meeting the positive-opening requirement of EN60947-5-1.
The built-in contact holder comes in snap-action and slow-action versions. Each action mode offers 1NC/1NO and 2NC arrangements, so the safety circuit gets the contact form it needs.
One model code assembles the switch from three positions. Six conduit entries, four internal switch actions and thirteen head styles combine to match each mounting point.
Standardized gold-clad contacts switch loads from DC5V 1mA signal circuits up to 10A standard loads. One contact set covers sensor inputs and control circuits alike.
A reinforced seal structure around the actuator entry keeps the enclosure at IP66. Dust and washdown stay outside the contact chamber through daily machine cleaning.

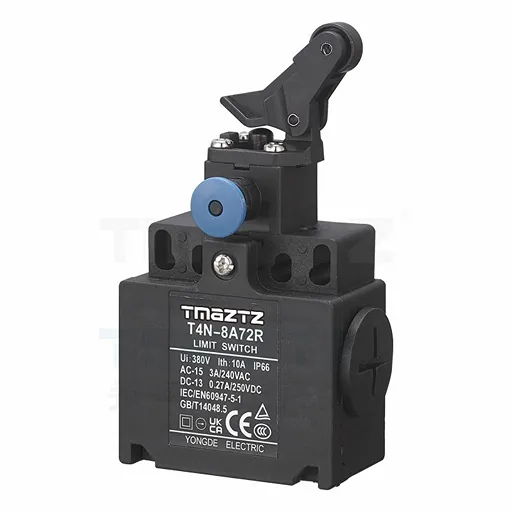

Need a switch that locks after actuation and waits for a person to reset it? See the T4NR manual reset series.
WHERE T4N FITS
Guard doors and protective covers on machining centers need interlock points that open on demand. The T4N mounts at the door edge and feeds the machine safety circuit directly.
Inspection hatches and landing doors call for positive-opening contacts at the access point. Gold-clad contacts keep the interlock signal reliable at control-circuit loads.
Fence doors along a conveyor line get opened for jam clearing and daily checks. A forced-opening switch at each door ties the guard into the line safety circuit.
QUICK MODEL SELECTION GUIDE
Â
01
The striker travels straight down onto the switch head. Top plunger models give a direct axial actuation point at guard edges.
Â
02
The cam or striker passes sideways across the head. Standard roller levers handle a repeatable lateral approach.
03
The striker path gets finalized on the machine after mounting. Adjustable roller arms reset on site to match the final approach.
04
The target arrives from varying directions or with low actuating force. Whisker, stick and cantilever heads respond to multi-direction contact.
