SNAP-ACTION PRECISION

A Tiny Movement In, A Clean Signal Out.

A snap action micro switch changes its contacts when a small force moves the plunger or lever. The switch point is set at the factory, and the mechanism repeats it through the rated life of the switch.

Request a sample

PRODUCT SERIES

Each Series Covers A Different Range Of Loads And Environments.

Click any series to browse its individual models and download technical documentation.

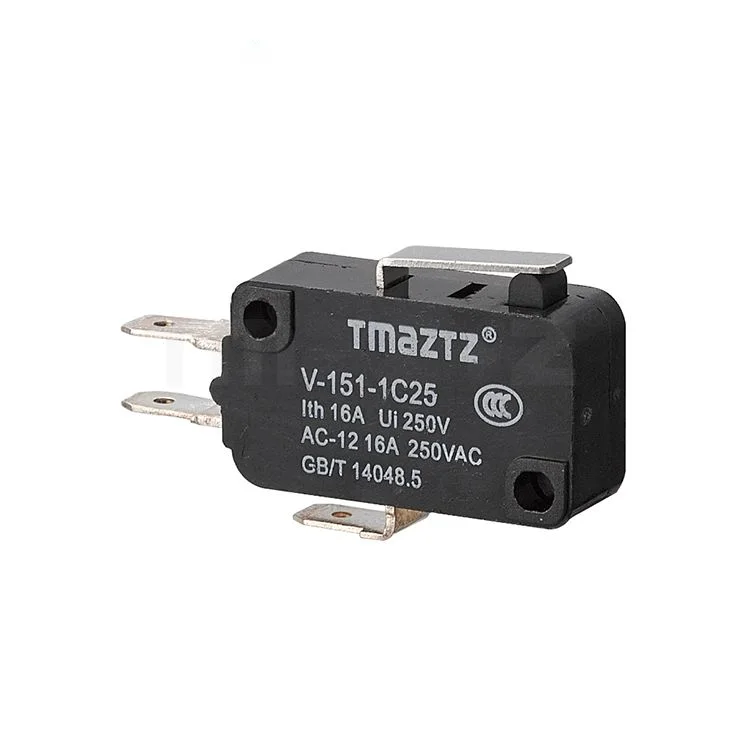

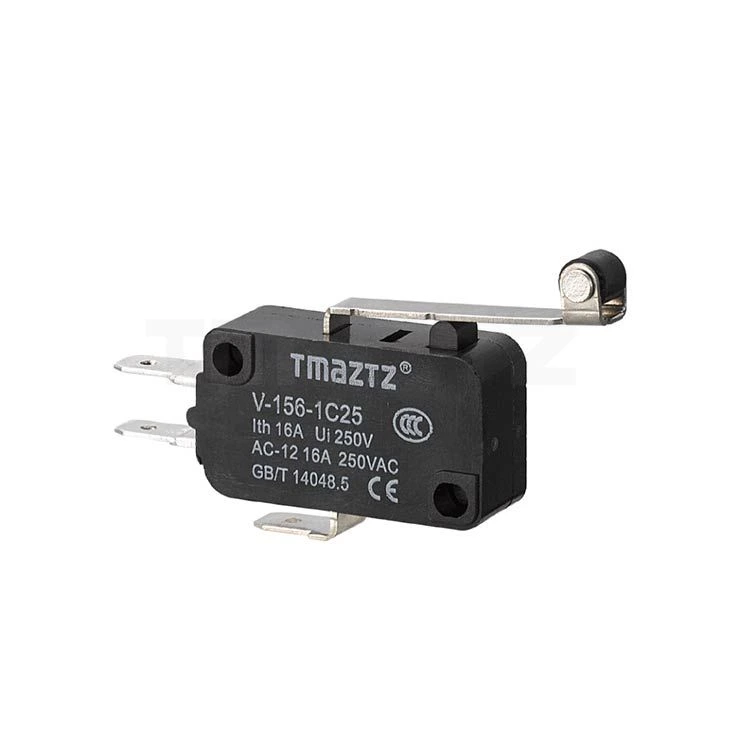

V15 16A Basic Micro Switch

A compact body for claw machines, drink dispensers, and other small appliances. It keeps its switch point under shock, and the shell takes mounting torque without cracking.

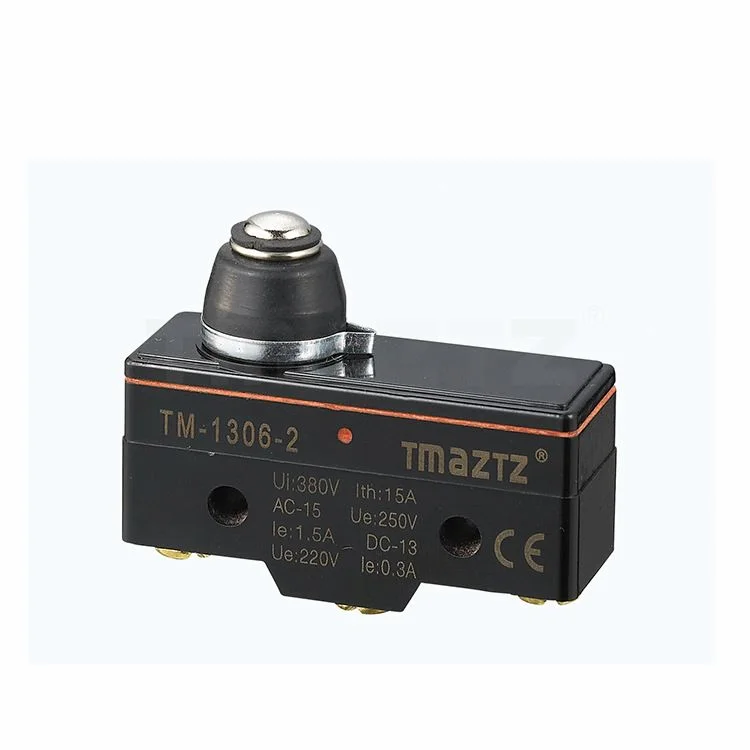

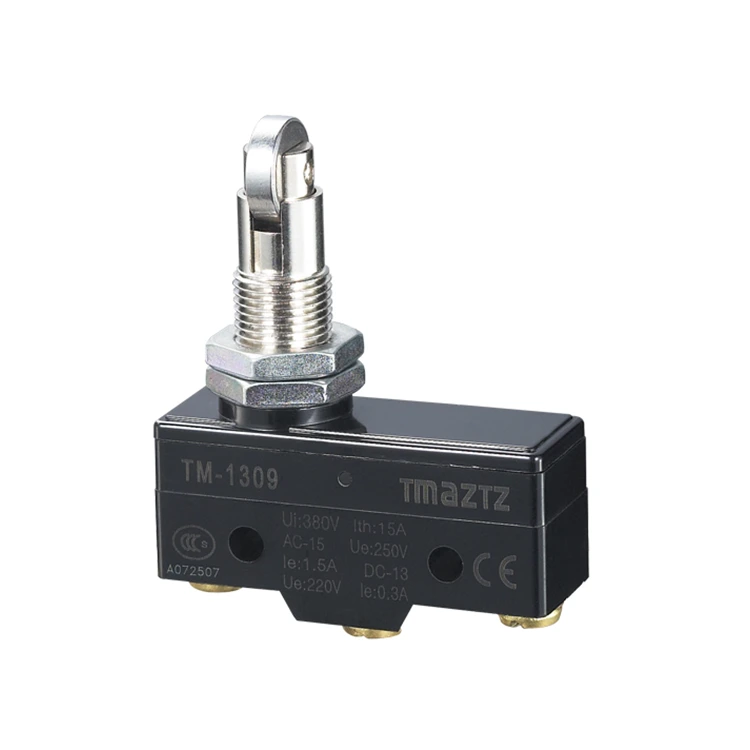

TM-1 High-Capacity Micro Switch

Our longest-running micro switch line, rated to 15A. Silver alloy contacts carry motor loads, and microload versions handle low-energy signal circuits.

TM1-1 Compact Prewired Micro Switch

The TM-1 with its cable sealed at the factory, so the connection is ready before it reaches you. Same body and mounting as the TM-1, built for equipment where water and condensation are a risk.

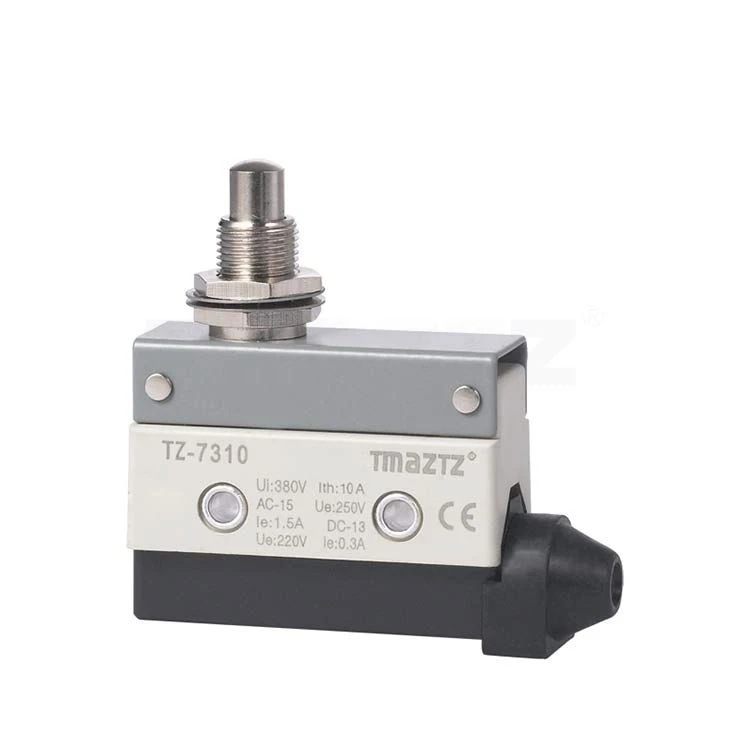

TZ-7 Horizontal Micro Limit Switch

The TM-1 switch, sealed inside a horizontal housing with a mounting base. Mounting matches the TM-1, so the sealed version drops into the same position when the environment is dusty or wet.

Accessories

TAP-Y soft and TAP-S hard covers snap over the terminals of TM series switches. They keep drips and dust away from the connection.

Browse accessories

RANGE AND OPTIONS

For A Micro Switch, Consistency Is The Whole Product.

Consistency decides how long the switch lasts. These options decide whether it fits.

Terminals come in screw, solder, and molded forms, so the connection matches your assembly method.
Actuators range from pin plungers to roller levers, so the switch matches the part that presses it.
CCC and CE certified and RoHS compliant, so compliance questions are settled before you order.
The standard contact form is one NO plus one NC, so your circuit can use either signal.

Which Micro Switch Fits The Job?

Send the load current, the mounting space, and the working environment. We will point you to the right series.

Download the catalog

Talk to an engineer

WHERE MICRO SWITCHES WORK

Equipment Where A Precise Click Keeps The Line Running.

Conveyor & Sorting

Sorting lines use micro switches for product presence and diverter position. The signal has to be fast and identical, run after run.

See conveyor applications

CNC & Machine Tools

Enclosed versions like the TZ-7 suit machine tools, where coolant and chips are part of the job. The sealed housing keeps coolant and chips off the mechanism.

See CNC applications

Elevator Systems

Compact micro switches work inside elevator door operators and control cabinets. Door operators cycle constantly, and these switches are rated for that kind of duty.

See elevator applications

Automated Parking

Barrier arms and transfer doors in automated parking signal their end positions with compact switches. The position signal has to arrive before the next movement starts.

See parking applications

Cannot Find The Right Operating Force Or Terminal Style?

Send the load, the space, and the environment it works in. We will confirm a standard model or scope a custom build.

Speak to an engineer

About custom builds
